XLink-ONE™ Product Line

XLink-ONE™
Product Series

Professional AV over IP solutions engineered for demanding broadcast, enterprise, and installation environments. From 4K wall plates to 8K fiber transceivers - purpose-built for every use case.

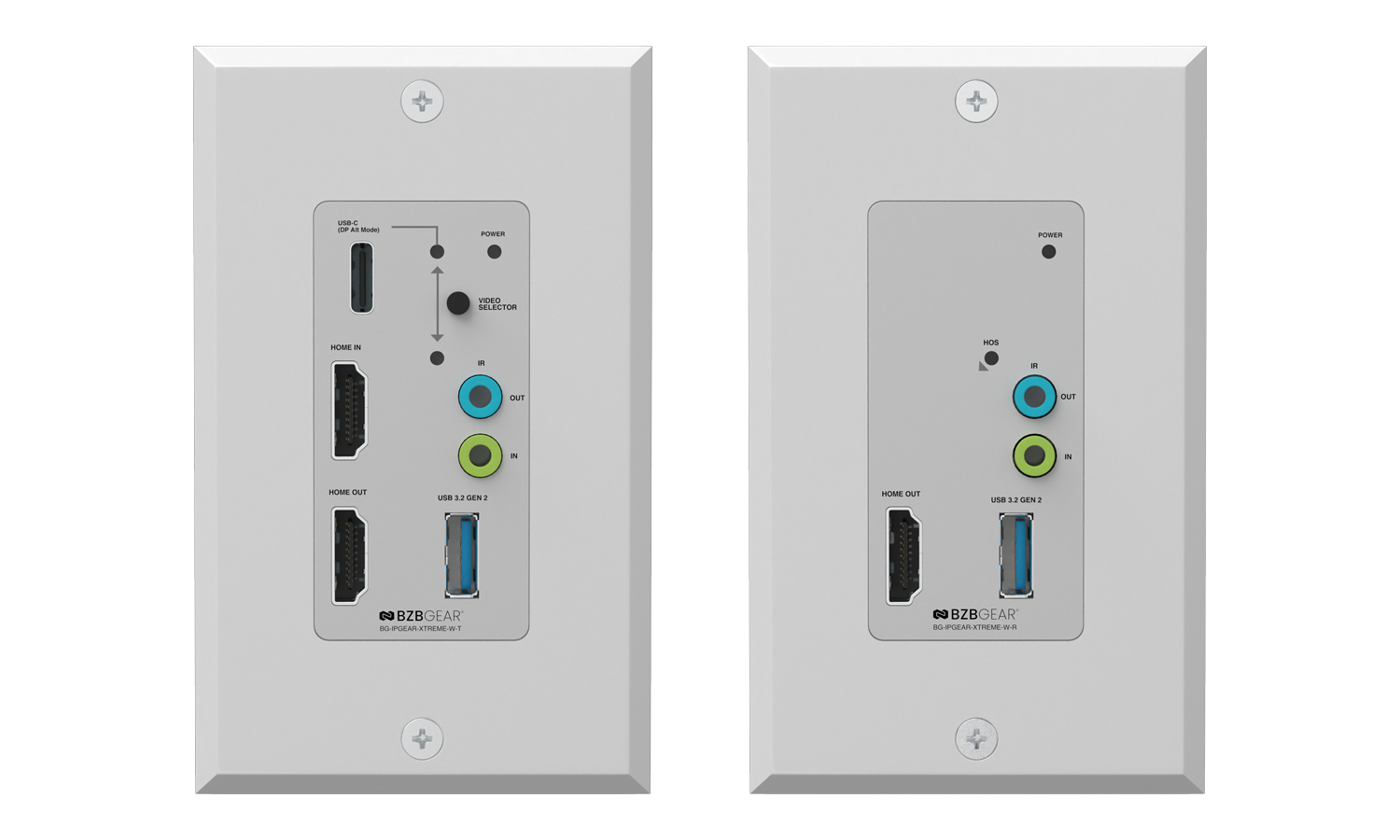

4K · Wall Plate
BG-IPGEAR-XTREME-W

4K/8K UHD HDMI 2.1 Over IP Multicast Wall Plate Encoder/Decoder with Seamless Matrix Switching/Multiview/KVM/USB 3.2 & PoE Support over 1 Gigabit Network

Encoder/Decoder with Seamless Matrix Switching, MultiView, KVM, USB 3.0 & POE

High-performance wall plate AV transmission solution extending Ultra-HD 4K@120Hz 4:4:4 video and high-fidelity audio up to 100m over standard Cat.5e cable. Supports USB-C Alt Mode, HDMI, DisplayPort, bi-directional IR, and seamless video switching.

BG-IPGEAR-XTREME-W
HDMI 2.1 & HDCP 2.3
HDMI 2.1 & HDCP 2.3
Delivers 4K@120Hz 4:4:4 with up to 40Gbps (FRL 5), HDR, VRR, ALLM, and eARC/ARC for premium video and audio
EXTENDED TRANSMISSION
EXTENDED TRANSMISSION
Transmits uncompressed video and 7.1-channel audio up to 100m (330ft) over Cat.5e with zero degradation
FLEXIBLE CONNECTIVITY
FLEXIBLE CONNECTIVITY
Features HDMI, USB-C (DP 1.4 Alt Mode), 3.5mm audio, RJ-45 Ethernet, and USB 3.1 Gen1/Gen2 for UVC webcams
ADVANCED VIDEO PROCESSING
ADVANCED VIDEO PROCESSING
Supports ultra-low latency switching, PiP, PbP, PoP (Chroma Key), and custom scaling for optimized display
NETWORK & CONTROL INTEGRATION
NETWORK & CONTROL INTEGRATION
Enables IGMP Snooping, 802.1Q VLAN, bi-directional IR, RS-232, CEC bypass, EDID management
RELIABLE BUILD
Compact metal enclosure with wall-mount support and ESD protection
View on BZBGEAR.com

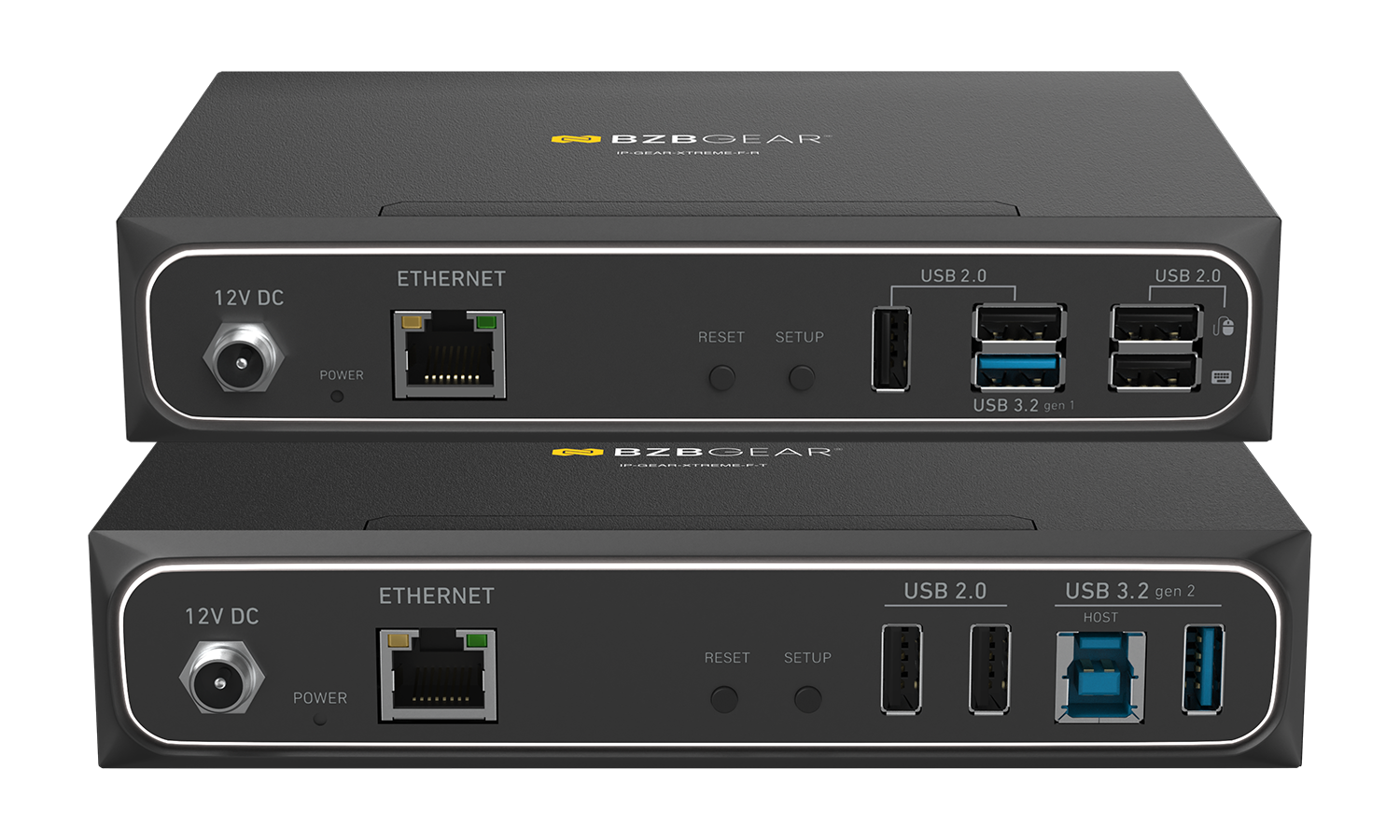

8K · Fiber
BG-IPGEAR-XTREME-F

4K/8K UHD HDMI 2.1 Fiber Extender Kit with Bi-Directional IR/RS-232/Gigabit Ethernet/USB & KVM

With Bi-Directional IR, RS-232, 1G Ethernet, USB 3.1 & KVM Support

Cutting-edge HDMI 2.1 over fiber extender for mission-critical AV transmission in broadcast, medical imaging, eSports, and control rooms. Delivers 8K video over fiber with ultra-low latency and zero signal degradation.

8K & 4K HDR SUPPORT
8K & 4K HDR SUPPORT
Transmits up to 8K@30Hz 4:4:4, 4K@144Hz 4:4:4 DSC, and 4K@60Hz 4:4:4 uncompressed for pristine image quality
HDMI 2.1 & HDCP 2.3
HDMI 2.1 & HDCP 2.3
Ensures compatibility with gaming consoles, media servers, professional video switchers, and AV processors
48GBPS VIDEO BANDWIDTH (FRL 6)
48GBPS VIDEO BANDWIDTH (FRL 6)
Provides high-speed, zero-latency transmission for next-generation AV applications
DISPLAYPORT 1.4 (USB-C ALT MODE)
DISPLAYPORT 1.4 (USB-C ALT MODE)
Connects directly to USB-C-enabled laptops, tablets, and workstations without adapters
UNCOMPRESSED 7.1CH HDMI AUDIO
UNCOMPRESSED 7.1CH HDMI AUDIO
Supports Dolby TrueHD, DTS-HD Master Audio, and LPCM for premium audio fidelity
OVER FIBER TRANSMISSION
OVER FIBER TRANSMISSION
Immune to EMI interference, ideal for broadcast studios, hospitals, and secure environments
View on BZBGEAR.com
BG-IPGEAR-XTREME-F

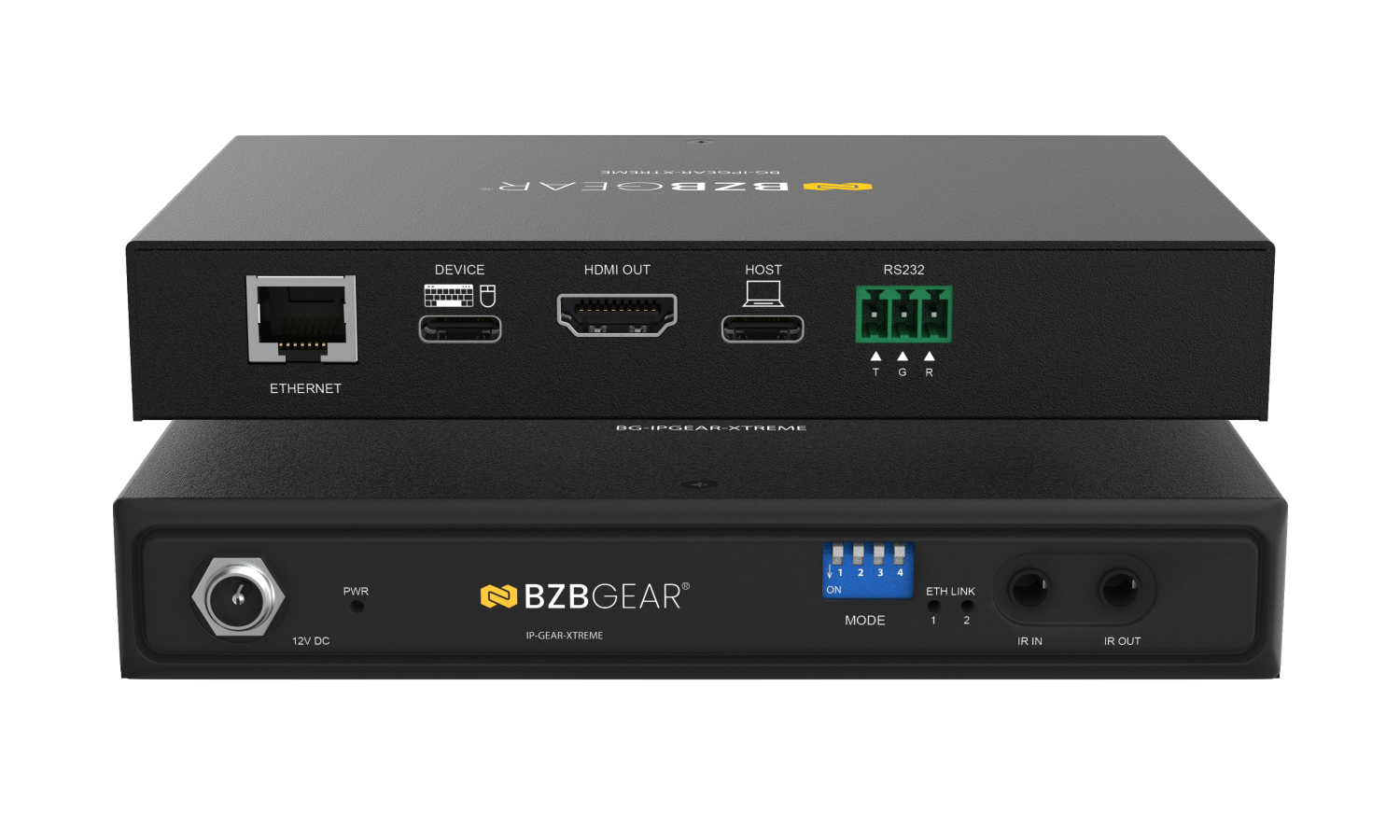

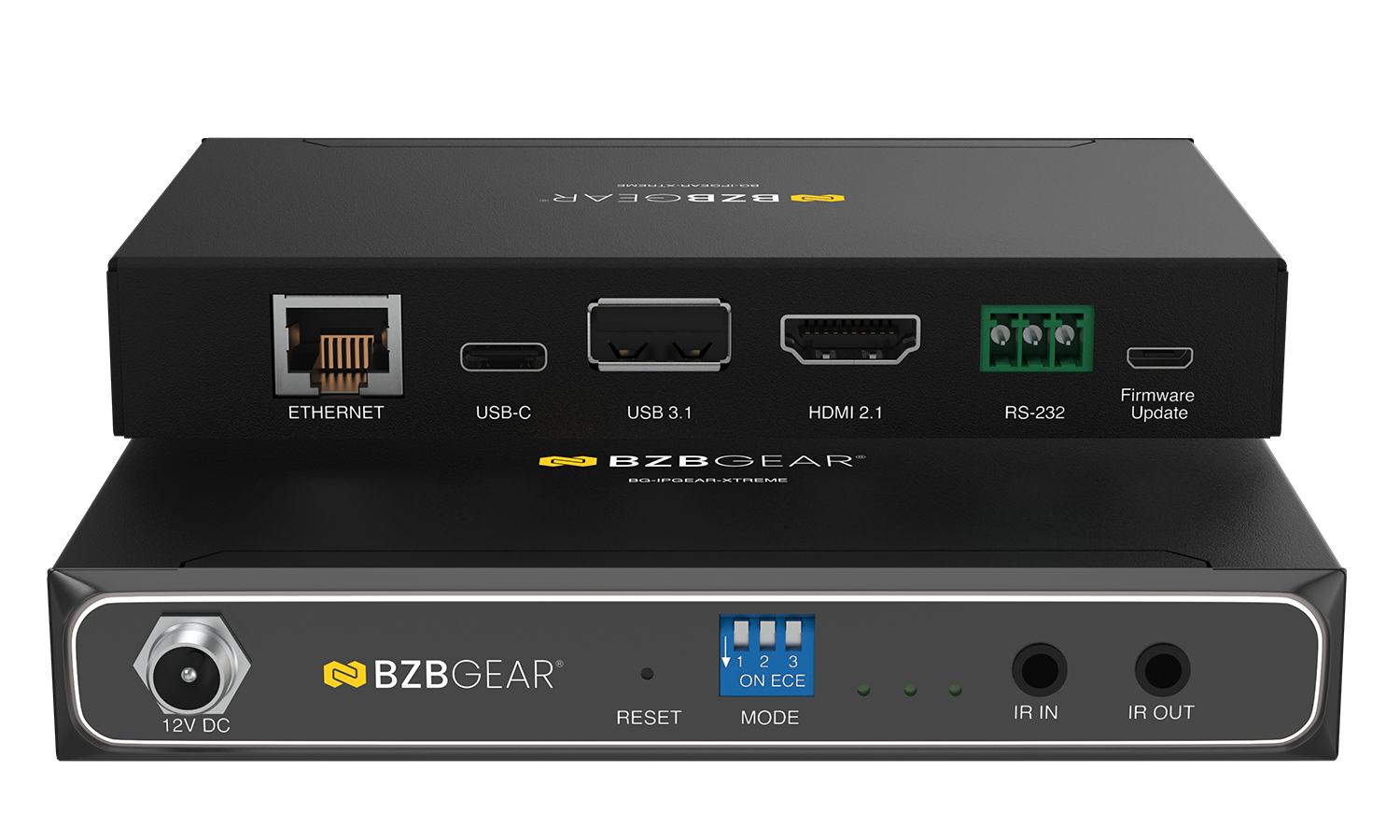

4K · IP Multicast
BG-IPGEAR-XTREME

4K UHD HDMI 2.1 AV over IP Multicast Transceiver with Seamless Matrix Switching/Multiview/KVM/USB & PoE Support over 1 Gigabit Network

With Seamless Matrix Switching, MultiView, KVM & USB 3.1 POE

Professional-grade AV over IP multicast system delivering 4K UHD video distribution across standard Gigabit networks. Supports unlimited point-to-multipoint distribution with seamless switching and KVM functionality.

BG-IPGEAR-XTREME
HDMI 2.1 & HDCP 2.3 COMPLIANCE
HDMI 2.1 & HDCP 2.3 COMPLIANCE
Ensures compatibility with the latest high-definition content protection standards
4K@120HZ 4:4:4 VIDEO TRANSMISSION
4K@120HZ 4:4:4 VIDEO TRANSMISSION
Provides ultra-high-definition video with crystal-clear clarity and exceptional color depth
VRR & ALLM SUPPORT
VRR & ALLM SUPPORT
Enhances gaming and interactive applications with smooth frame rates and reduced input latency
LONG-DISTANCE TRANSMISSION
LONG-DISTANCE TRANSMISSION
Extends HDMI signals up to 100m (330ft) over Cat.5e cabling with no quality loss
ADVANCED AUDIO SUPPORT
ADVANCED AUDIO SUPPORT
Delivers uncompressed 7.1-channel digital audio including Dolby TrueHD and DTS-HD Master Audio
NETWORK CONTROL INTEGRATION
NETWORK CONTROL INTEGRATION
Full IGMP Snooping, VLAN, bi-directional IR, RS-232 and EDID management support
View on BZBGEAR.com

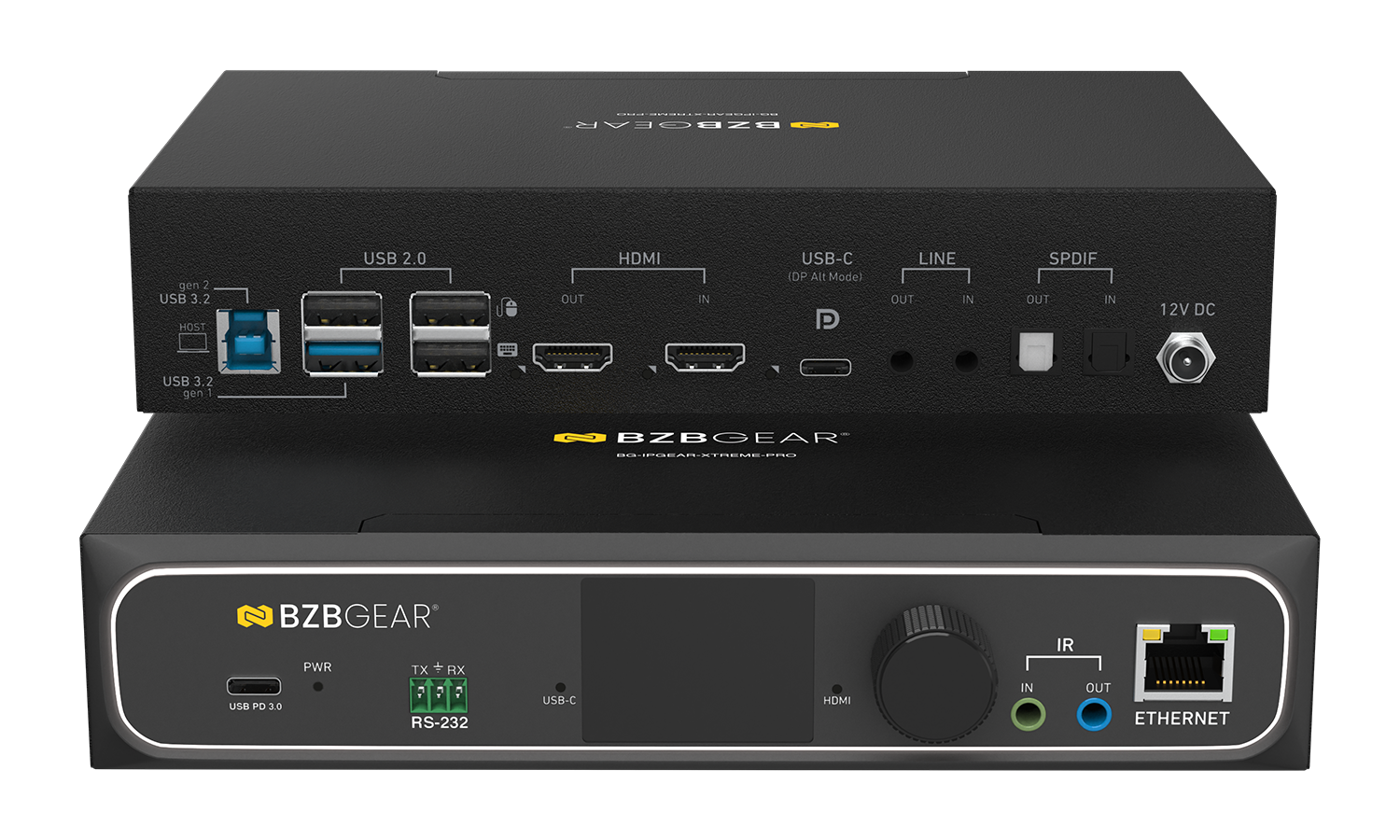

8K · Transceiver
BG-IPGEAR-XTREME-PRO

4K/8K UHD HDMI 2.1 AV over IP Multicast Transceiver with Seamless Matrix Switching/Video Wall/Multiview/KVM/USB & PoE Support over 1 Gigabit Network

With Seamless Matrix Switching, Video Wall, MultiView, KVM, USB 3.0 & POE

Next-generation 8K AV over IP transceiver combining transmitter and receiver in one unit. Supports video wall configurations, MultiView, seamless matrix switching, and KVM over standard IP networks.

ULTRA-HD RESOLUTION
ULTRA-HD RESOLUTION
Up to 8K@60Hz (4:2:2 DSC) & 4K@144Hz (4:4:4) for next-generation display environments
VIDEO WALL SUPPORT
VIDEO WALL SUPPORT
Advanced video wall functionality with image rotation & flipping capabilities
MULTI-VIEW MODES
MULTI-VIEW MODES
PiP, PbP, & PoP (Chroma Key) for enhanced multi-source display layouts
AUDIO FORMAT SUPPORT
AUDIO FORMAT SUPPORT
DTS-HD Master Audio & Dolby TrueHD high bit-rate audio for premium sound
MULTI-INPUT SUPPORT
MULTI-INPUT SUPPORT
USB-C (Alt Mode DP 1.4) with simultaneous HDMI & DisplayPort input options
SOFTWARE MANAGEMENT
SOFTWARE MANAGEMENT
Supports web GUI, Windows/macOS/iOS/Android control app for full system management
View on BZBGEAR.com
BG-IPGEAR-XTREME-PRO

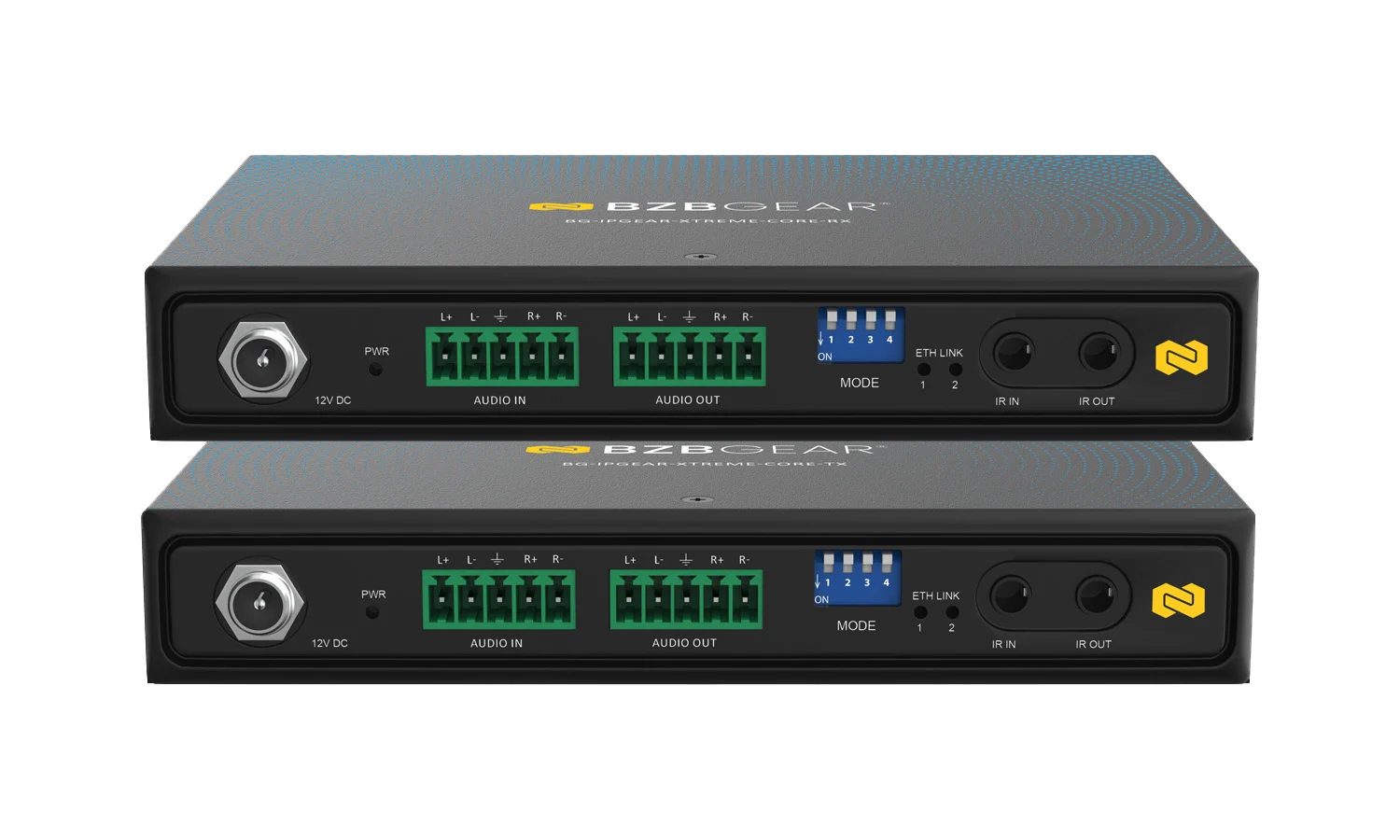

4K · Cat5e Extender
BG-IPGEAR-XTREME-CORE

4K120 UHD HDMI 2.1 Extender with IR/eARC/ARC/PoC/RS-232/Ethernet/USB/KVM/Balanced Audio up to 560ft

Point-to-point HDMI 2.1 extension over Cat5e/6 up to 170m with full audio, control, and USB pass-through

Professional-grade HDMI 2.1 extender delivering 4K@120Hz 4:4:4 over standard Cat5e/Cat6 cabling up to 560ft (170m). Features eARC/ARC for premium audio, balanced audio output, bi-directional IR, RS-232, USB/KVM extension, and Power over Cable (PoC) for simplified single-cable installation.

BG-IPGEAR-XTREME-CORE
HDMI 2.1 OVER IP MULTICAST
HDMI 2.1 OVER IP MULTICAST
Distributes full-bandwidth HDMI 2.1 signals over standard 1GbE networks with multicast support
4K@120HZ 4:4:4 PERFORMANCE
4K@120HZ 4:4:4 PERFORMANCE
Delivers Ultra-HD video with no compression artifacts or chroma loss
ULTRA-LOW LATENCY
ULTRA-LOW LATENCY
Less than one frame of latency for real-time, interactive applications
ADVANCED CONTROL INTEGRATION
ADVANCED CONTROL INTEGRATION
Supports bi-directional IR, RS-232, Ethernet, and USB 3.1 extension
SCALABLE NETWORK ARCHITECTURE
SCALABLE NETWORK ARCHITECTURE
Supports point-to-point, point-to-many, and multicast configurations
EARC/ARC & BALANCED AUDIO
EARC/ARC & BALANCED AUDIO
Full eARC/ARC support and balanced audio output for professional audio systems
View on BZBGEAR.com

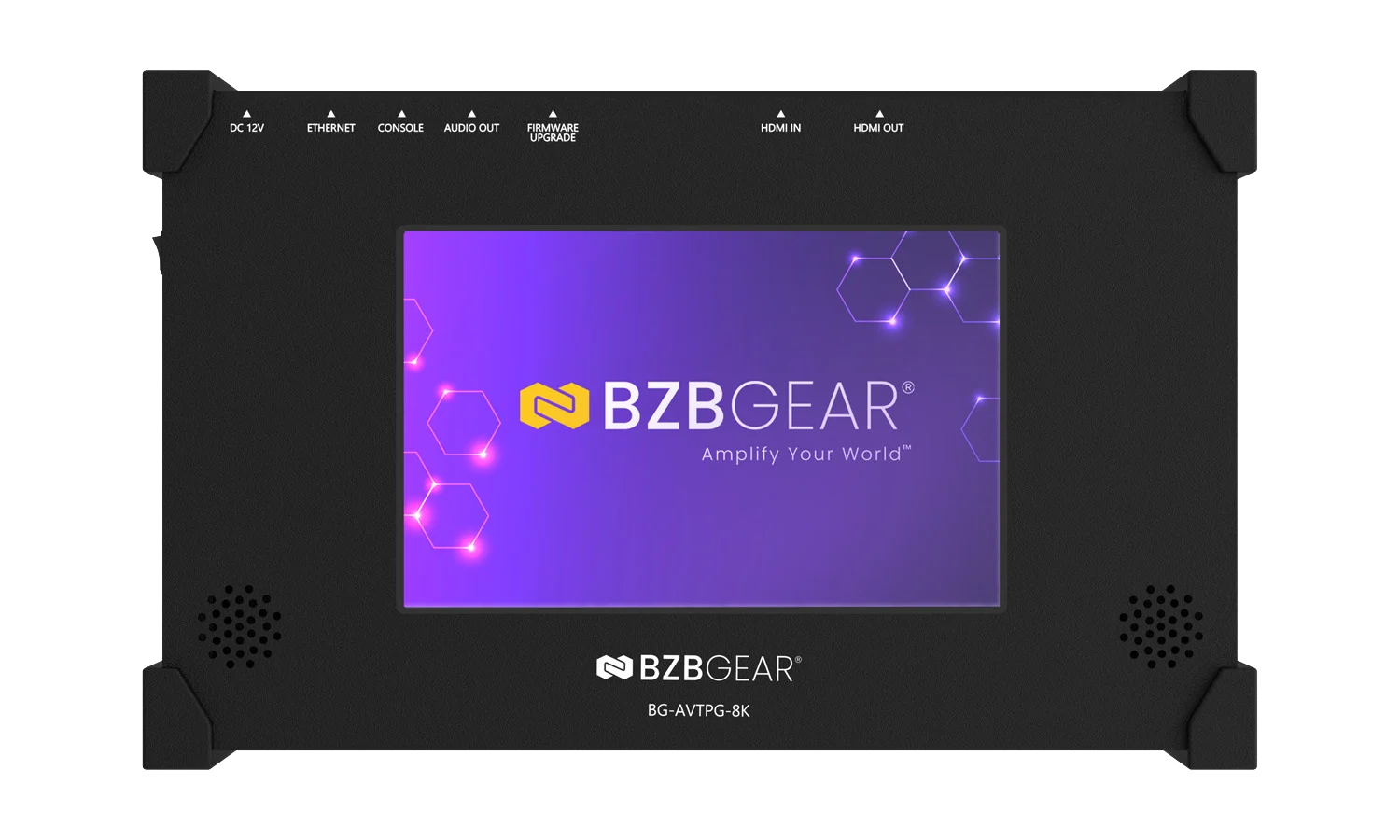

8K · Signal Analyzer
BG-AVTPG-8K

8K UHD HDMI 2.1 48Gbps Advanced Signal Test Generator and Analyzer (1080P/4K/8K Support)

Professional signal test generator and analyzer supporting 8K60 4:2:0, 4K120, and 1080P with HDCP compliance

Advanced all-in-one signal test generator and analyzer with full HDMI 2.1 48Gbps support. Features a 7-inch touch panel, HDCP generation and analysis, HDMI loop-through, rechargeable battery for portable operation, and mouse/Ethernet control for comprehensive AV system verification and commissioning.

FUTURE PROOF 8K SUPPORT
FUTURE PROOF 8K SUPPORT
8K60 4:2:0 8-bit, 8K30 4:4:4, 4K120Hz and 4K60 10/12-bit HDR pattern generator
7
7" TOUCH PANEL
Intuitive 7.0-inch touch panel for quick and easy pattern selection and control
FLEXIBLE CONTROL OPTIONS
FLEXIBLE CONTROL OPTIONS
Mouse control and Ethernet-based remote control for flexible operation
HDMI LOOP THROUGH
HDMI LOOP THROUGH
Simplified monitoring with HDMI loop-through output for downstream devices
HDCP COMPLIANT
HDCP COMPLIANT
Full HDCP analyzer and generator supporting HDCP-encrypted video transmission
RECHARGEABLE BATTERY
RECHARGEABLE BATTERY
Built-in rechargeable battery for portable field testing without mains power
View on BZBGEAR.com
BG-AVTPG-8K
